Overview

Let's talk about system design and how to approach it step by step.

System Design Introduction

System design is the phase where ideas start taking a concrete shape.
Before writing code or setting up infrastructure, we need a clear plan of what we are building and how it will work.

At its core, system design is about translating requirements into a structured solution. It helps us think through architecture, data flow, responsibilities, and constraints early—when changes are still cheap and mistakes are easier to fix.

The goal is simple: build systems that are clear, scalable, maintainable, and reliable, not just systems that “work”.

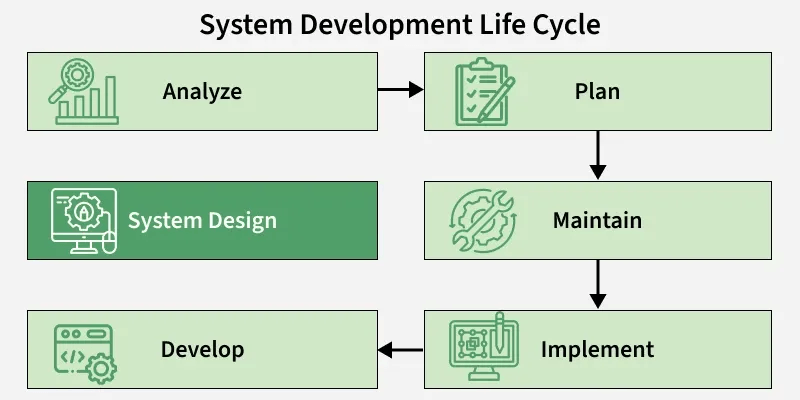

System Design in the SDLC

In the Software Development Life Cycle (SDLC), system design sits between requirements and implementation.

Careful

Skipping or rushing this phase often leads to fragile systems, technical debt, and constant rework.

System design:

  • Defines the backbone of the application
  • Clarifies business logic and technical boundaries
  • Prepares the system to handle edge cases and growth

Without a solid design, implementation becomes guesswork, and testing turns into damage control.

Loading image...

System design is commonly divided into two complementary levels.

Loading image...

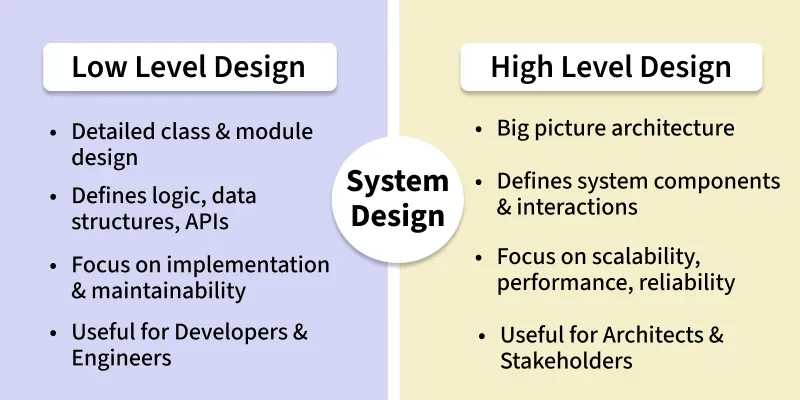

HLD & LLD

To design systems effectively, we usually think at two levels: High-Level Design (HLD) and Low-Level Design (LLD).
They serve different purposes but work best together.

High-Level Design (HLD)

High-Level Design focuses on the big picture. It defines how the system is structured and how major components interact.

Note

HLD answers questions like:

  • What services or modules exist?
  • How do they communicate?
  • How does data flow through the system?

It is usually created by architects, senior engineers, and stakeholders who have experience with large systems.

Prerequisites and knowledge areas:

  • Solid understanding of functional and non-functional requirements
  • Basic data structures and algorithms
  • Databases (SQL, NoSQL), caches, APIs
  • Networking fundamentals (DNS, HTTP, TCP/UDP)
  • Security basics (auth, TLS, rate limiting)
  • Architectural patterns (monolith vs microservices)
  • Load balancing, fault tolerance, scalability
  • Observability tools and monitoring concepts

What HLD typically includes:

  • Overall system architecture
  • Major components and responsibilities
  • Data flow between services
  • Technology and infrastructure choices
  • Trade-offs related to performance, cost, and scalability
  • Architecture and deployment diagrams

Real-world examples:

  • Netflix migrating from monolith to microservices
  • Uber’s event-driven architecture
  • Twitter’s caching and load-balanced timelines

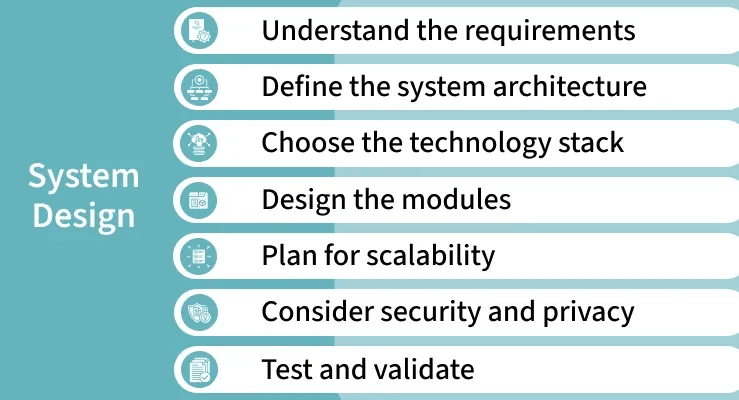

Steps to Get Started with System Design

Designing systems can feel overwhelming at first, but following a clear process helps a lot.

Loading image...

  1. Understand Requirements
    Talk to stakeholders, read documentation, and clarify expectations.

  2. Define the Architecture
    Identify main components, services, and how they interact.

  3. Choose the Tech Stack
    Select tools, languages, and databases that fit the problem—not trends.

  4. Design Modules
    Break the system into clear modules with well-defined responsibilities.

  5. Plan for Scalability
    Think about growth, load, and bottlenecks early.

  6. Ensure Security & Privacy
    Address authentication, authorization, encryption, and data protection.

  7. Test & Validate
    Validate assumptions and simulate real-world usage.

System design improves with practice. Each system you design sharpens your intuition for the next one.

💡 Tips for Solving System Design Problems

When faced with a system design problem—especially in interviews—it’s normal to feel lost at first. There is rarely a single “correct” solution.

1. Break Down the Problem

Split the system into smaller services or features.
You are not expected to design everything—focus on the core.

Ask questions. Clarify scope. Confirm assumptions.

2. Communicate Your Thinking

Talk through your decisions. Explain trade-offs. Use diagrams and flows to make ideas clear.

Good communication matters as much as the design itself.

3. Make Reasonable Assumptions

You may need to assume:

  • Traffic volume
  • Data size
  • Request rates

Keep assumptions realistic and explain why they make sense.

Key Principles to Keep in Mind

  • Scalability – Can the system grow smoothly?
  • Performance – Is latency acceptable?
  • Reliability – Can it handle failures?
  • Security – Is data protected?
  • Maintainability – Is it easy to evolve?
  • Interoperability – Does it integrate cleanly?
  • Usability – Is it intuitive for users?
  • Cost-effectiveness – Does it balance cost and value?

System design is not about perfection.
It’s about making thoughtful decisions, understanding trade-offs, and building systems that stand the test of time.
