How the Internet Actually Works

Alright. Sit down, coffee in hand, because we are about to do something most tutorials refuse to do properly.

A customer in Tunis types mysite.tn into a browser. About two hundred milliseconds later, pixels appear. In between, dozens of machines that have never met each other did exactly the right thing, in the right order, at the speed of light down a piece of glass.

Here is the uncomfortable part.

So this is the vocabulary doc for the entire handbook. Everything in Volume 1, and honestly everything in Volumes 4, 5, 12, and 13, assumes you own the words on this page.

My honest confession before we start: when I first learned networking, I memorized acronyms and passed exams while understanding almost nothing. The shift happened when I stopped asking what is the OSI model and started asking what job does each layer do, and who gets blamed when it fails. That question is the spine of this whole page.

---

1. Layers: why the internet is a stack of specialists

The analogy: shipping a gift in nested boxes

Imagine you are sending a fragile gift from Tunis to Berlin.

You wrap the gift in bubble wrap. You put it in a small box with a note. You put that box inside a bigger shipping box with an address label. The courier puts your box inside a container. The container goes on a plane.

Now count the layers. Nobody at any stage needed to know what the gift was. The pilot did not care about your note. The person reading your note did not care which plane flew. Each layer wrapped the previous one, added exactly the information it needed, and trusted the layer below to move it.

That is networking. Every layer wraps the layer above it and adds its own label.

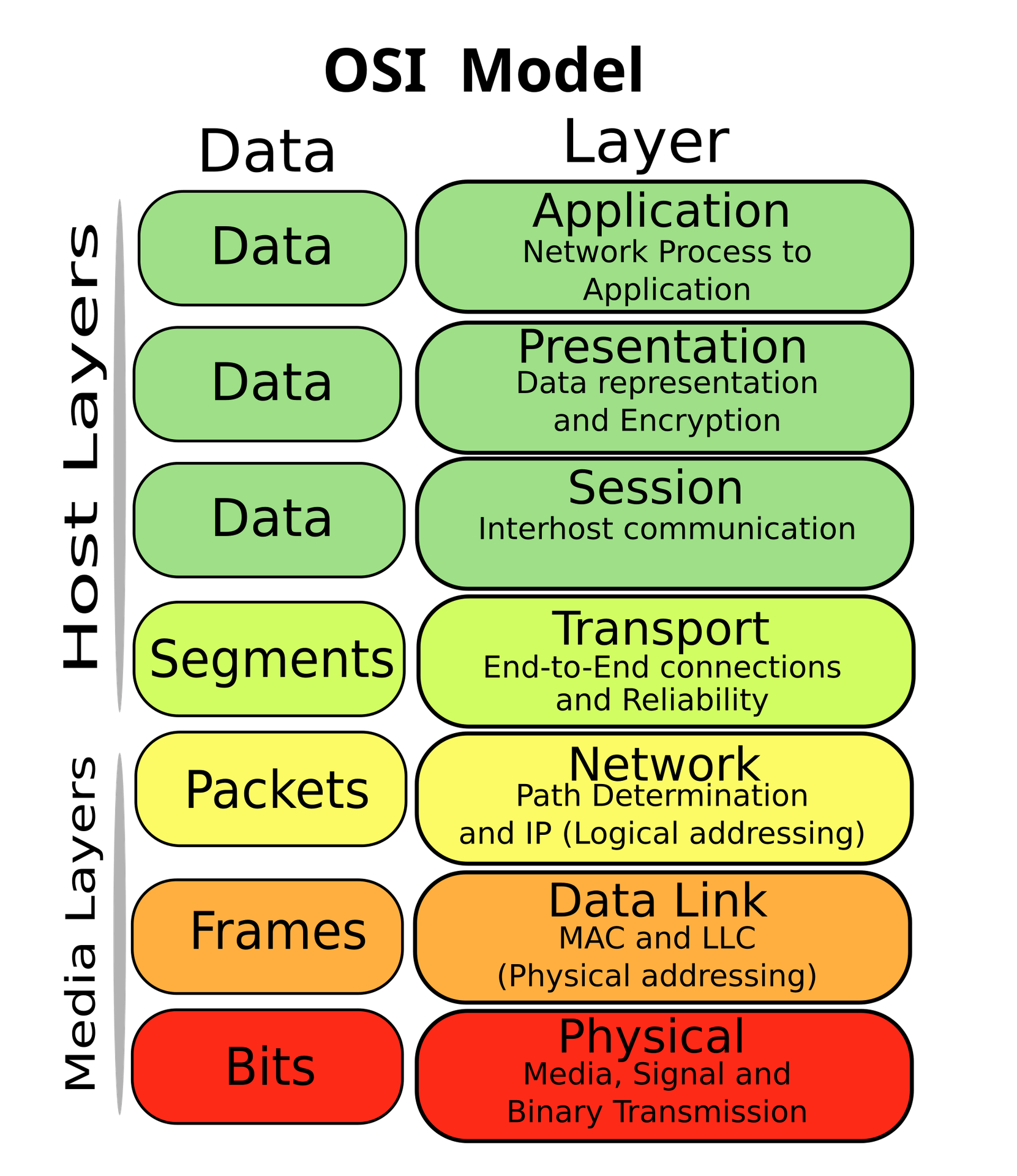

The technical truth

Two models describe this. Engineers speak both, sloppily, in the same sentence.

Loading media

Layer	Its one job	Data unit	Who owns it at HostKid
7 Application	Speak the language of the app: HTTP, SMTP, DNS	Data	Product engineering, customers
6 Presentation	Formatting and encryption representation	Data	Usually folded into TLS discussions
5 Session	Keeping a conversation open	Data	Rarely discussed on its own
4 Transport	Deliver reliably to the right program: TCP, UDP	Segment	Platform engineering
3 Network	Find a path across networks: IP, routing	Packet	Infra IT
2 Data link	Move it across one local link: Ethernet, MAC, VLAN	Frame	Infra IT
1 Physical	Actual electrons and photons: cables, optics	Bits	Infra IT and the colo provider

Here is the same idea as a diagram you can hold in your head.

Preparing diagram

Why hosting people care

Because blame lives in layers. When a customer says "the site is slow," the only professional first question is which layer.

Symptom the customer reports	Most likely layer	Who investigates first
Nothing works, link light is dark	1 Physical	Infra IT, remote hands
Works inside the rack, not outside	2 or 3, VLAN or routing	Infra IT
Small pages load, large uploads hang	4, MTU or MSS	Platform engineering
Wrong site loads, or nothing resolves	7, DNS	Support then DNS platform
Browser warns about security	6 or 7, TLS certificate	Support then platform

Here is how I use layers in real life: I do not recite them. I walk up from the bottom. Is the cable up? Does the local network see it? Does it route? Does the port answer? Does the name resolve? Does the certificate validate? Does the app respond? The first "no" is your bug.

---

2. Layer 2: the local conversation

The analogy: an open plan office

Picture one big office room with thirty desks and no walls.

If you stand up and shout "Who is Ahmed?", everyone hears you. That room is a broadcast domain: one shout reaches everybody in it.

Now add a receptionist at the door who, over time, memorizes which desk each person sits at. When a letter arrives for Ahmed, she walks it straight to his desk instead of shouting. That receptionist is a switch.

MAC versus IP, the confusion that never dies

This one tripped me up for embarrassingly long, so let me give you the sentence that fixed it.

Your MAC address is your face. Your IP address is your mailing address. Your face never changes and only helps people who can see you. Your address changes when you move, and it is the only thing that works from another country.

	MAC address	IP address
Looks like	00:0d:9d:86:59:e5	192.168.168.7
Assigned by	The manufacturer	Your network administrator or DHCP
Scope	One local link only, never routed	Global, routable across the world
Changes when you move networks	No	Yes

The Ethernet frame: the envelope of the local network

Loading media

Notice the order. Destination address comes first. That is not an accident. A switch can start forwarding as soon as it reads the first field, without waiting for the whole frame. Networking is full of small decisions like this that exist purely for speed.

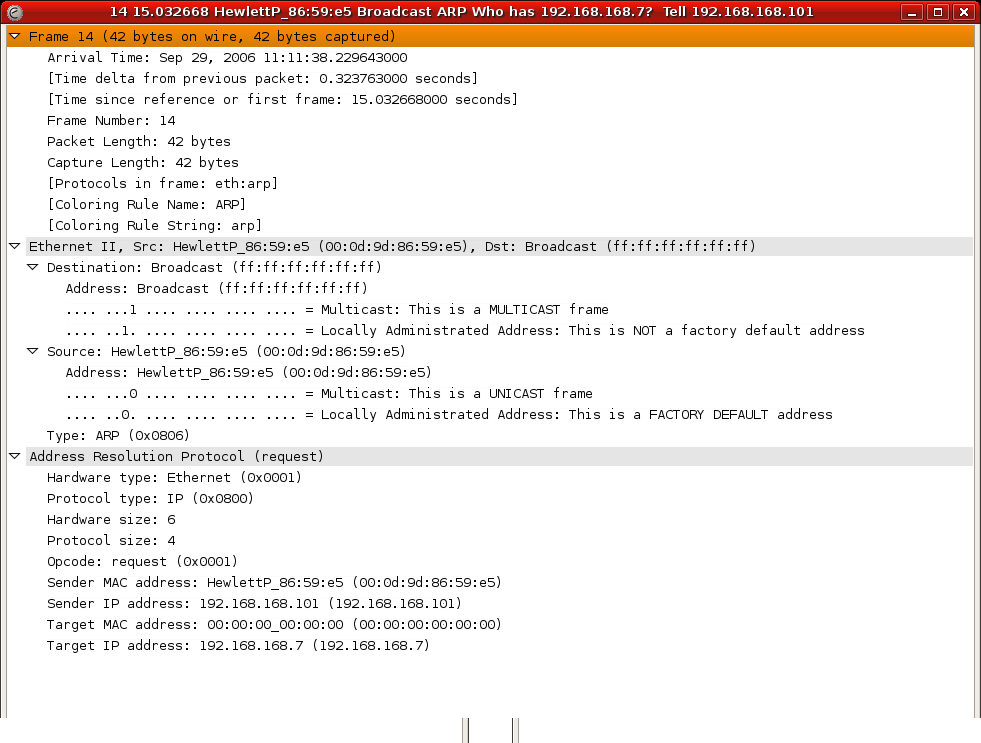

ARP: how a name becomes a face

Your computer knows it wants to reach 192.168.168.7. But to put a frame on the wire, it needs a MAC address. So it shouts.

That shout is called ARP, the Address Resolution Protocol. It literally says: who has 192.168.168.7? Tell 192.168.168.101.

Loading media

Look at that destination MAC: ff:ff:ff:ff:ff:ff. All ones. That is the address for everybody, the shout across the room.

That table is your machine's memory of "which face belongs to which address in this room." It expires on purpose, because people change desks.

The hosting takeaway: layer 2 mistakes take down entire racks, because everyone in a broadcast domain shares the blast radius. Layer 3 mistakes usually take down one subnet. That asymmetry is why we obsess over VLAN design in Doc 3.

---

3. Layer 3: IP addressing and the math you cannot dodge

The analogy: a street address

10.20.30.40 is a street address. Part of it says which neighborhood, and part of it says which house.

The trick nobody explains clearly at first: the address itself does not tell you where the split is. You need a second piece of information, the subnet mask, to know how much of the address is neighborhood.

This is the part I found genuinely strange at the beginning. An IP address alone is incomplete information. 10.20.30.40 means almost nothing on its own. 10.20.30.40/24 is a complete thought, because now I know the first 24 bits are the neighborhood and the last 8 bits are the house number.

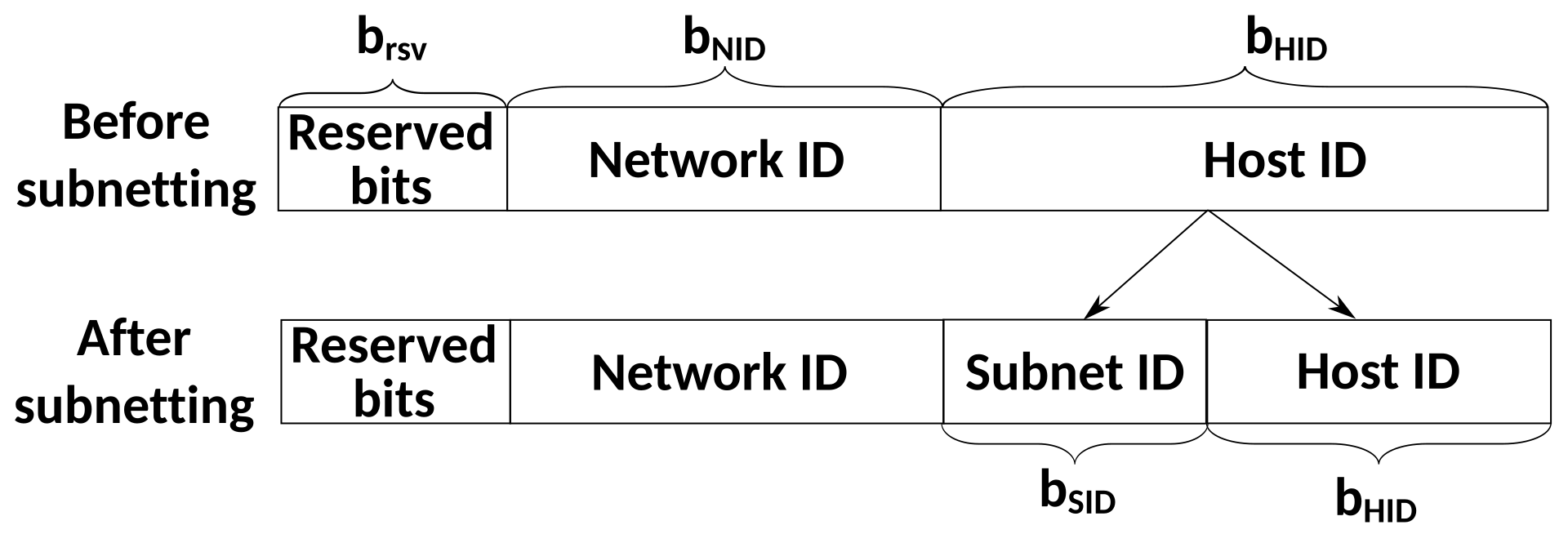

The technical truth

An IPv4 address is 32 bits, written as four numbers of 8 bits each, so each number lands between 0 and 255.

Loading media

CIDR notation, decoded once and for all

The number after the slash is how many bits belong to the network.

Notation	Subnet mask	Total addresses	Usable hosts	Typical use at HostKid
/30	255.255.255.252	4	2	A point to point link between two routers
/29	255.255.255.248	8	6	A small block of public IPs sold to a customer
/24	255.255.255.0	256	254	One management VLAN, or the smallest globally routable block
/22	255.255.252.0	1024	1022	The largest single allocation some registries still issue
/16	255.255.0.0	65536	65534	The private management space we carve pods out of

Doing it by hand, the way you will be asked in an interview

Take 192.168.10.0/24 and split it into four equal pieces. Borrow two bits, because two bits give you four combinations. /24 plus 2 becomes /26.

Subnet	Network address	First usable	Last usable	Broadcast
1	192.168.10.0/26	192.168.10.1	192.168.10.62	192.168.10.63
2	192.168.10.64/26	192.168.10.65	192.168.10.126	192.168.10.127
3	192.168.10.128/26	192.168.10.129	192.168.10.190	192.168.10.191
4	192.168.10.192/26	192.168.10.193	192.168.10.254	192.168.10.255

The trick that made subnetting click for me: stop thinking in bits and think in block size. A /26 has a block size of 64, so the subnets start at 0, 64, 128, 192. A /28 has a block size of 16, so they start at 0, 16, 32, 48 and so on. Find the block size and you can subnet in your head at a whiteboard.

Block size is simply 256 minus the last octet of the mask. For /26 the mask is 255.255.255.192, and 256 - 192 = 64. Done.

The special ranges you must recognize on sight

Range	Name	Why you care
10.0.0.0/8, 172.16.0.0/12, 192.168.0.0/16	Private, RFC 1918	Not routable on the internet. This is where our management and storage VLANs live.
127.0.0.0/8	Loopback	The machine talking to itself. 127.0.0.1 is home.
169.254.0.0/16	Link local	Memorize this one. CloudStack uses link local addressing for the private channel between a hypervisor and its system VMs.
100.64.0.0/10	Carrier grade NAT	Shared address space for providers who ran out of public IPv4.
224.0.0.0/4	Multicast	One sender, many listeners. CloudStack VXLAN in multicast mode depends on it.

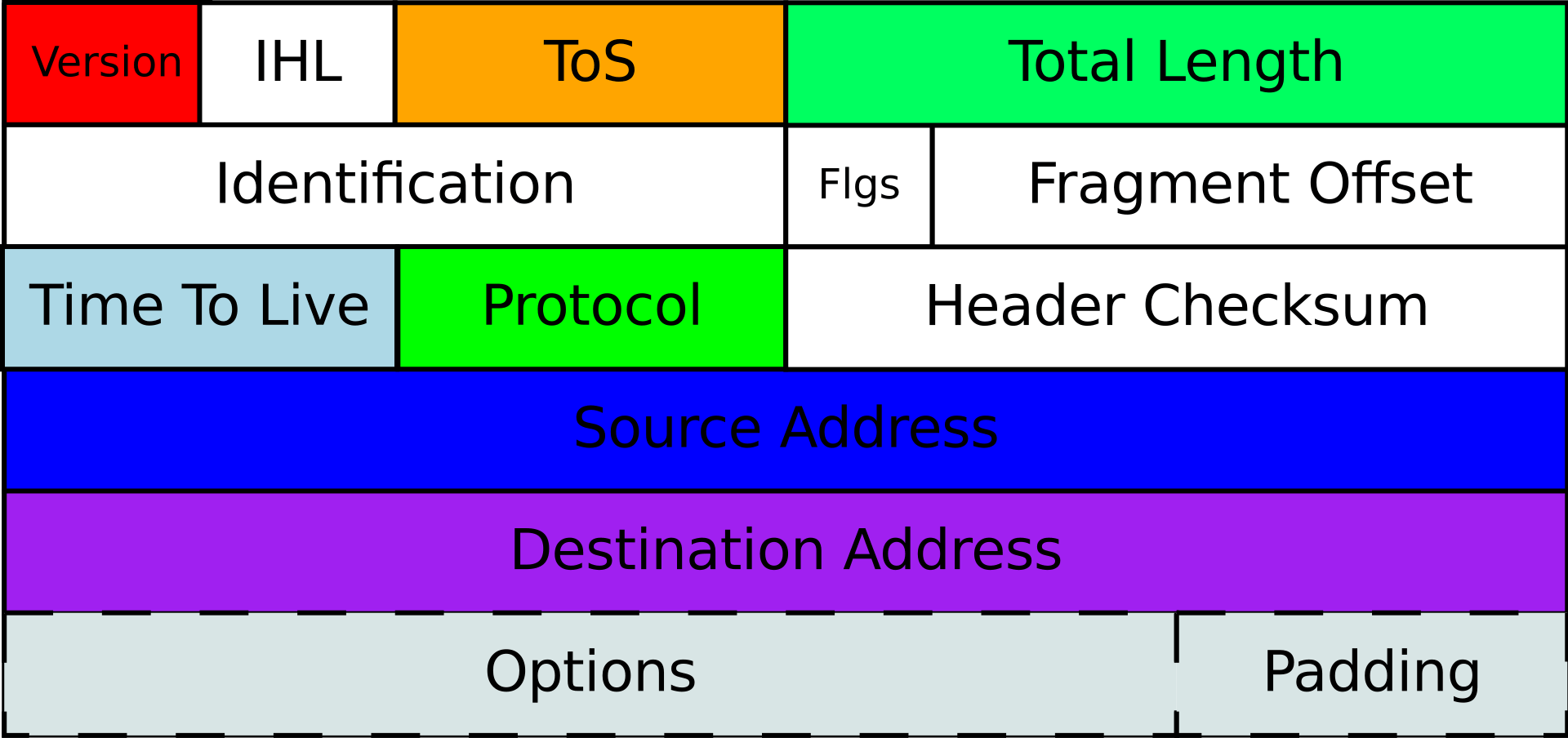

The IP header: the shipping label

Loading media

Three fields deserve your attention right now, because they come back later in this doc:

Field	Plain meaning	Where it bites you
TTL, time to live	A hop counter that decreases by one at every router, then the packet dies	This is the entire mechanism behind traceroute, and it prevents packets looping forever
Flags and fragment offset	Whether this packet may be cut into pieces, and where this piece belongs	The MTU black hole problem later in this doc
Protocol	What is inside: TCP, UDP, ICMP	Firewall rules match on this constantly

IPv6, briefly, because it is not optional anymore

IPv6 is 128 bits instead of 32. Written in hexadecimal groups separated by colons, with a rule that lets you compress one run of zero groups into ::.

Concept	IPv4	IPv6
Address size	32 bits	128 bits
Standard subnet for a network	Varies, often /24	Always /64, by convention and by protocol design
Typical customer allocation	One address, maybe a /29	A whole /48, which is 65536 subnets
Link local	169.254.0.0/16, rarely used	fe80::/10, used constantly and automatically
NAT	Everywhere, out of necessity	Not needed, and generally an anti pattern

One IPv6 warning that costs people days: do not block all ICMPv6 the way people used to block ICMP in IPv4. IPv6 needs it for neighbor discovery and for path MTU discovery. Block it and things half work, which is the worst failure mode there is.

---

4. Routing: how a packet crosses the world without a map

The analogy: road signs, not a GPS

Here is the single most beautiful idea in networking, and most people get it backwards.

You are driving from Tunis to Berlin. You do not have the full route memorized. At every intersection you read a sign, and the sign only tells you one thing: which way to go next. Then you drive to the next intersection and read the next sign.

No single road sign knows the whole path. Each one only knows the next hop. And yet you arrive.

That is IP routing, exactly. A router does not know the route to your destination. It knows one next hop, and it trusts that the next router knows more than it does.

The trick nobody tells you first: longest prefix match

A router often has several signs that all match your destination. Which one wins?

The most specific one. Always.

Route in the table	Meaning in plain words	Specificity
0.0.0.0/0	Everything in the universe, go this way	Least specific, the fallback
10.0.0.0/8	Anything starting with 10, go this way	More specific
10.20.0.0/16	Anything starting with 10.20, go this way	Even more specific
10.20.30.40/32	This exact single machine, go this way	Most specific, always wins

Here is how I remember longest prefix match: imagine two road signs at the same intersection. One says "Tunisia" and the other says "Tunis city center." If you are going to Tunis city center, you follow the second sign, because whoever wrote it clearly knew more about your specific destination.

Read that carefully, because it is a complete lesson in three commands. The machine has three signs. Traffic for 10.20.30.40 matched the /16 sign and went to 10.10.0.254. Traffic for 8.8.8.8 matched nothing specific, so it fell through to default and went to 10.10.0.1. That is the entire algorithm.

Seeing the hops with your own eyes

Remember TTL, the hop counter in the IP header? traceroute abuses it brilliantly. It sends a packet with TTL 1, which dies at the first router and generates a complaint. Then TTL 2, which dies at the second. Every complaint reveals one more router along the path.

Loading media

Static versus dynamic routing

The hosting reality check: until we have our own ASN and BGP sessions, we are a customer of somebody else's network, and our IP addresses are borrowed. The day we announce our own prefix, we become a participant in the internet's routing conversation. That is a genuine business milestone, not a technical detail.

---

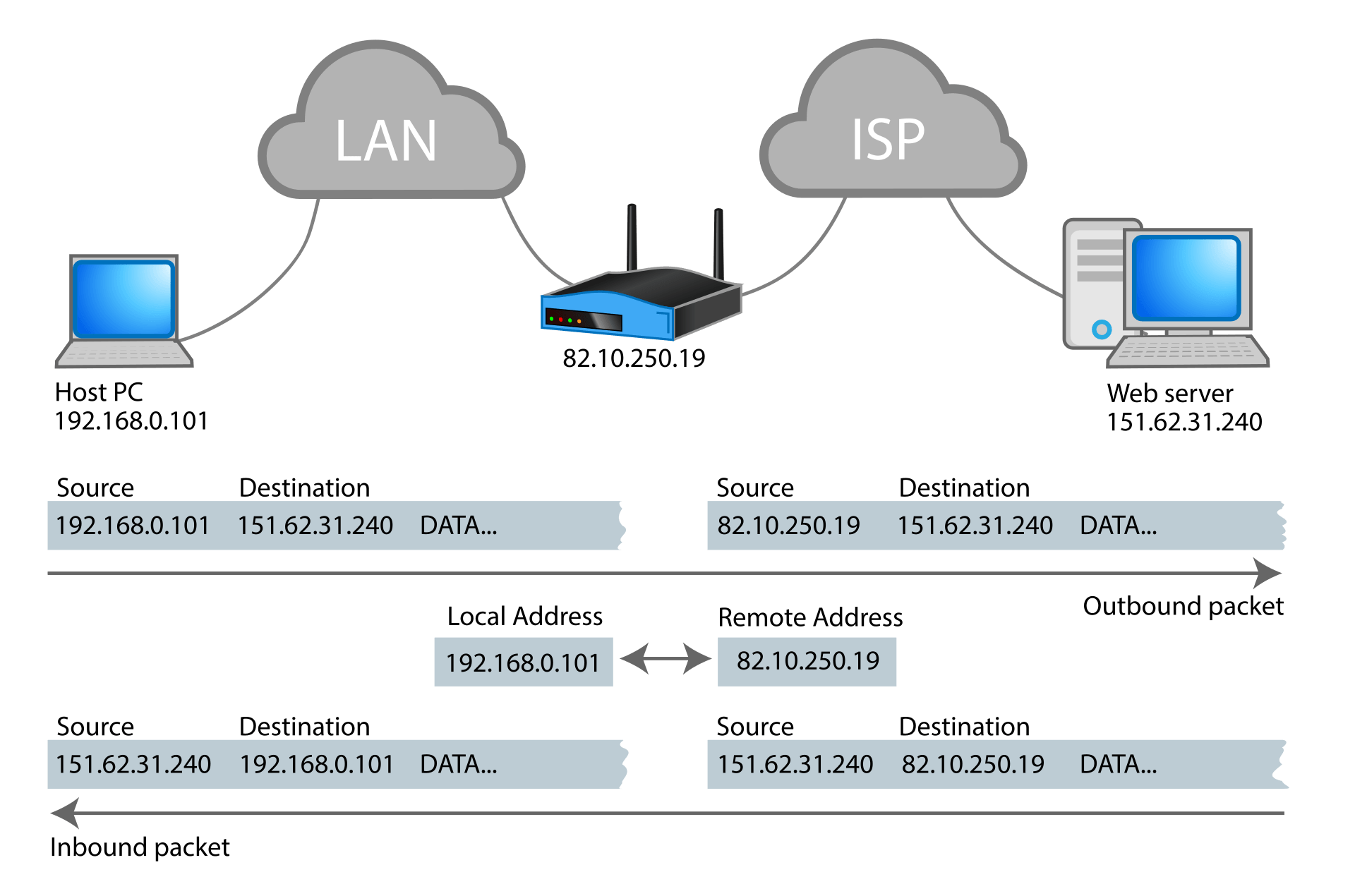

5. NAT: the hotel front desk

The analogy that is so good it is basically the truth

A hotel has one public phone number. Two hundred guests inside have room extensions that mean nothing to the outside world.

When a guest calls out, the world sees the hotel's number. When someone calls in and asks for a guest, the receptionist looks in her notebook and connects the call to the right room. The receptionist's notebook is the only reason any of this works.

NAT is the receptionist. The notebook is called the translation table. That is the whole concept.

Loading media

Why NAT exists at all

Because IPv4 ran out of addresses. There are about 4.3 billion of them and far more devices than that. NAT was the emergency plumbing that let the internet keep growing past its own address limit, and thirty years later the emergency plumbing is load bearing infrastructure.

The flavours, and the names people mix up

Name	What it rewrites	Hotel analogy	Where we use it
SNAT, source NAT	The source address of outbound packets	Guest calls out, the world sees the hotel number	Customer VMs reaching the internet to fetch updates
DNAT, destination NAT	The destination address of inbound packets	Reception forwards an incoming call to room 412	Publishing a customer web service on a public IP
PAT, also called NAT overload or masquerade	Source address and source port	Many guests share one number, tracked by call ticket	The default for a whole guest network sharing one public IP
Static NAT, one to one	A whole address, both directions	A guest gets a dedicated direct line	A customer paying for a dedicated public IP
Port forwarding	One port on a public IP to one port on a private IP	Extension 8080 always rings the kitchen	Exposing a single service without a dedicated IP

The consequence you must internalize

NAT is not a firewall, but it accidentally behaves like one, and that confusion has caused real breaches.

NAT blocks unsolicited inbound connections as a side effect of not having an entry in the notebook, not as a security decision. It has no policy, no logging intent, and no concept of allow or deny. Treating NAT as your security boundary is like treating a locked front door as a fire alarm. Related, but not the same job.

---

6. Layer 4: ports, sessions, and the packet size problem

The analogy: apartment numbers

An IP address gets you to the building. It does not get you to the right apartment.

203.0.113.10 is the building. Port 443 is the apartment where the web server lives. Port 25 is where the mail server lives. Port 22 is where SSH lives.

Here is how I explain a socket to people who are new: a socket is the full delivery instruction. Not just the building, and not just the apartment, but both ends of the conversation at once: your address and port, plus their address and port. Four pieces of information. That is why a thousand people can browse the same website simultaneously without their pages getting mixed up. Each conversation has a unique combination.

Port	Service	Why a hosting company cares
22	SSH	Administration. Should never be open to the whole internet.
25	SMTP between mail servers	Often blocked outbound by providers to fight spam.
53	DNS, both UDP and TCP	Yes, TCP too. Large answers and DNSSEC need it.
80 and 443	HTTP and HTTPS	The revenue ports.
587	SMTP submission from users	The port customers should actually use to send mail.
8080 and 8443	CloudStack console websocket	Miss these and the customer console shows a black screen.

TCP versus UDP: registered mail versus a postcard

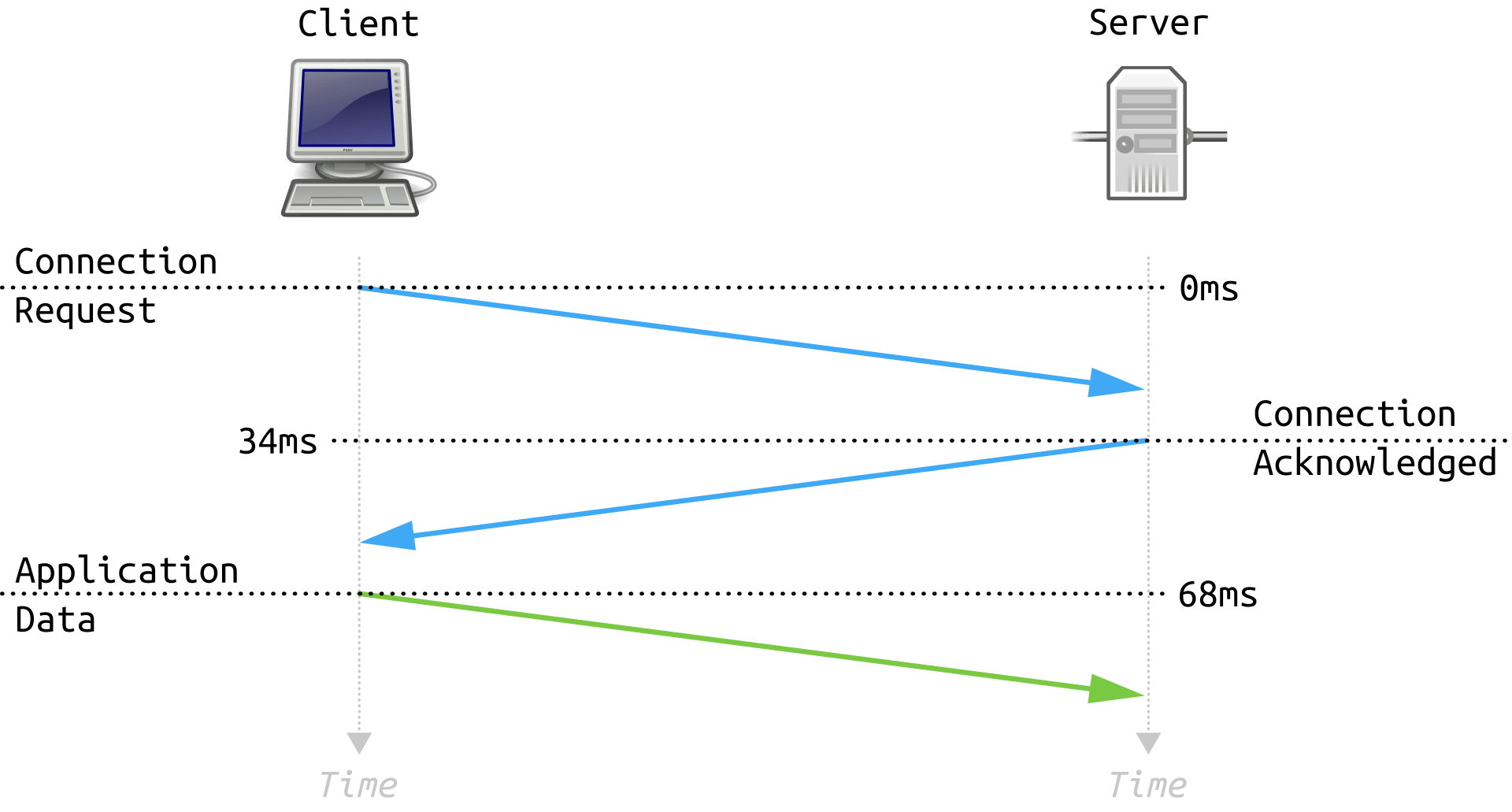

The three way handshake: can you hear me?

Before TCP sends any data, both sides confirm they can hear each other. It is exactly the awkward start of a phone call.

Loading media

Step	Technical name	What it means in human words
1	SYN	"Hello, can you hear me? Here is where my numbering starts."
2	SYN plus ACK	"I hear you. Can you hear me? Here is where my numbering starts."
3	ACK	"I hear you. Let us talk."

Notice 127.0.0.1:3306. MySQL is listening on loopback only, so the outside world cannot reach it at all. Compare that with nginx on 0.0.0.0:443, which means every interface. That single difference between 127.0.0.1 and 0.0.0.0 is one of the most common real breaches in shared hosting. A database bound to all interfaces on a machine with a public IP is an open database.

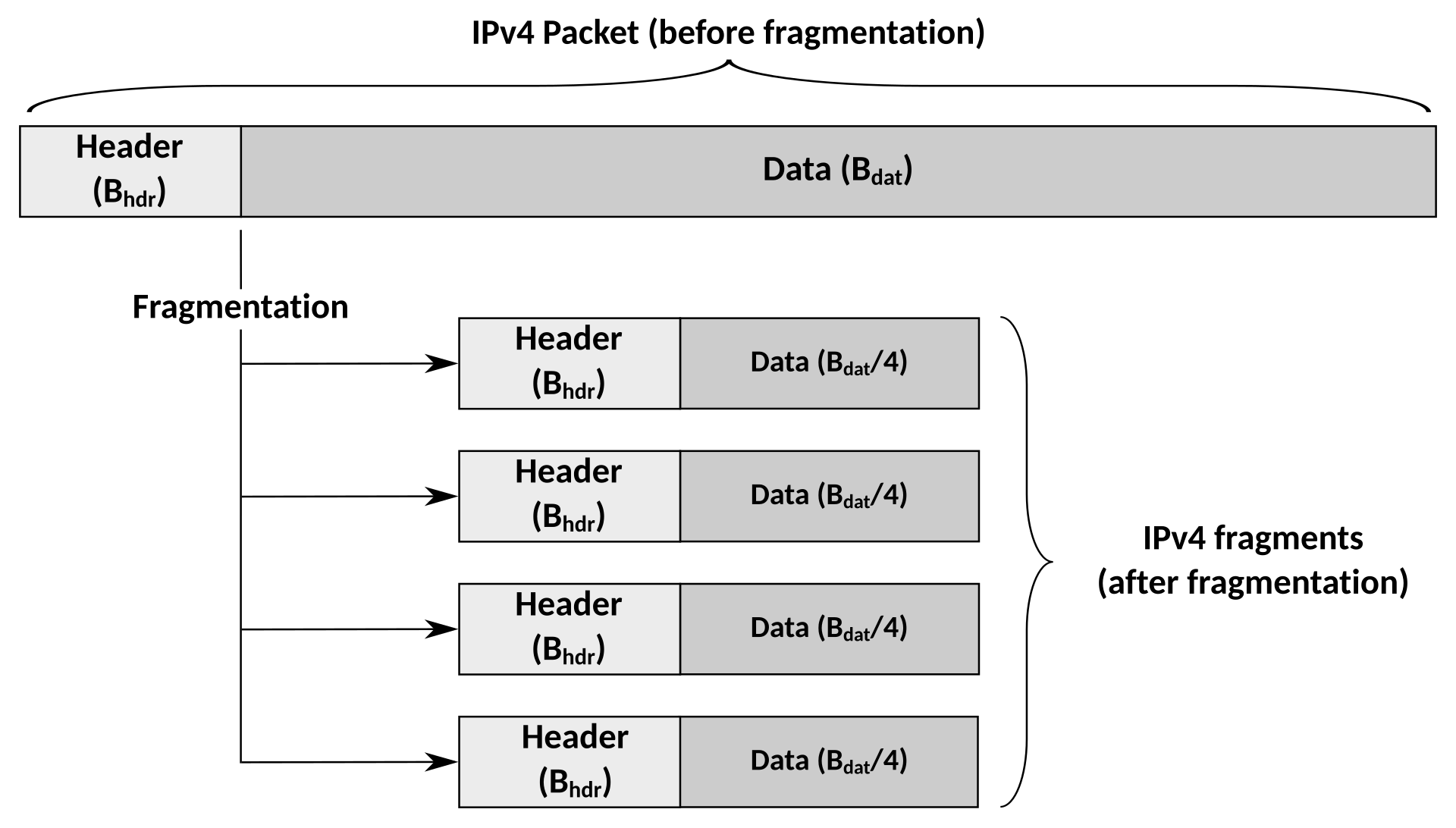

MTU and MSS: the doorway problem

The analogy: moving a sofa through a doorway

You bought a sofa. The doorway is one metre wide. If the sofa is wider, you have three options: cut it into pieces, find another door, or give up.

If a packet is too big for the next link, the router may cut it into pieces. That is fragmentation.

Loading media

The MTU black hole, and why it is the meanest bug in networking

Here is the failure mode that has personally cost me an evening, and I want you to recognize it in five minutes instead.

Modern senders set a flag called do not fragment and rely on Path MTU Discovery: when a packet is too big, the router is supposed to send back an ICMP message saying "too big, try smaller." The sender then sends smaller. Elegant.

Now imagine a firewall in the middle that blocks all ICMP because someone read a blog post in 2003 saying ICMP is dangerous.

At first I found this genuinely strange, and here is the trick that made it click: the sender is not told anything. It sends a big packet, gets silence, assumes the packet was simply lost, and retries the same big packet forever. Meanwhile small packets sail through perfectly.

The symptom is unforgettable once you have seen it:

What the customer says	What is really happening
"Ping works fine"	Ping is tiny. Tiny packets fit.
"The login page loads"	Small response. Fits.
"But the dashboard hangs forever"	Large response. Too big, silently dropped, retried forever.
"And SSH connects but freezes on ls"	The handshake is small, the directory listing is not.

The -M do flag means do not fragment, and -s sets the payload size. Add 28 bytes for the IP and ICMP headers to get the real packet size. The largest size that succeeds, plus 28, is your true path MTU. Binary search between 1200 and 1500 and you will find the ceiling in about six tries.

---

7. DNS: the internet's phone book, and the source of most outages

The analogy: asking for directions in a city you do not know

You are looking for a specific office. You do not have a map. So you ask.

You ask a police officer at the city entrance. He does not know the office, but he says "that is in the business district, ask the guard at the business district gate."

You ask the district guard. He does not know the office either, but he says "that building belongs to the Acme company, their reception knows."

You ask Acme reception. She says "third floor, room 12." Exact answer.

Three questions, three partial answers, one exact result. Nobody knew everything, and everybody knew who to ask next. That is DNS.

Loading media

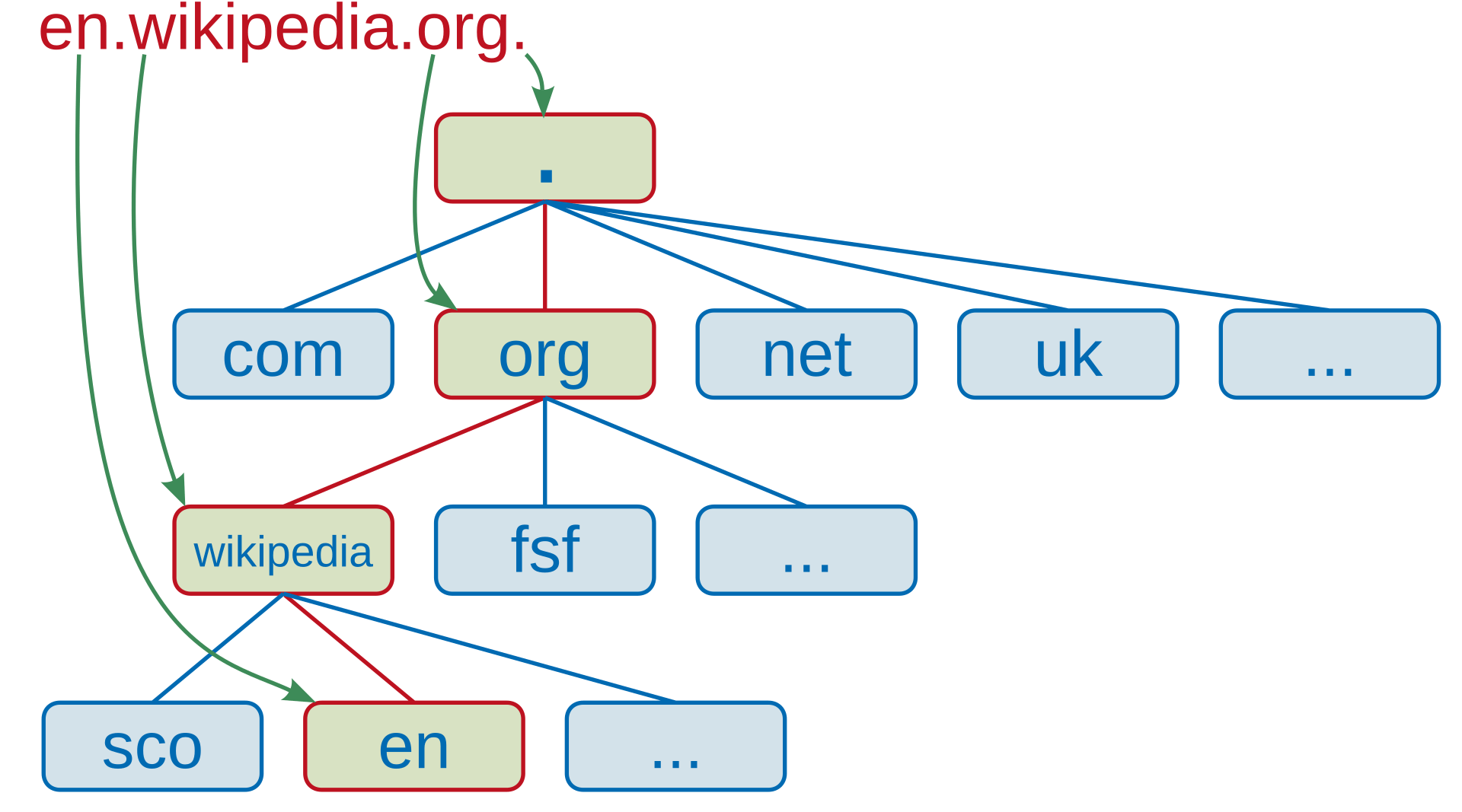

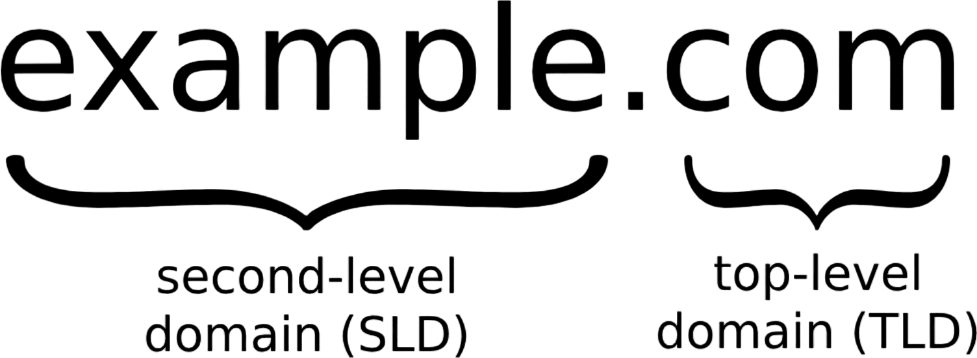

Reading a domain name backwards

This is the detail that reorganizes everything in your head once you see it.

Loading media

At first I found this genuinely strange, and here is the trick to understand it: read domain names right to left, like an address, because that is the order DNS actually resolves them in.

www.shop.example.com is not "a website called www dot shop dot example dot com." It is:

Read in this order	Part	What it is	Who controls it
1st, invisible	The trailing dot	The root of the entire DNS tree	The root server operators
2nd	com	Top level domain, the TLD	The registry for .com
3rd	example	The registered domain	The customer, through a registrar
4th	shop	A subdomain	Whoever runs the zone, which is often us
5th	www	A hostname inside that subdomain	Same

Yes, the trailing dot is real. example.com. is the fully correct form. Browsers hide it and everyone forgets it exists until they write a zone file and it starts to matter enormously.

Recursive versus authoritative: two completely different jobs

This distinction is worth real money, because a hosting company usually operates both and they fail in different ways.

The record types you will type every single week

Record	Answers the question	Example value	Watch out for
A	Which IPv4 address?	203.0.113.10	The workhorse. Most tickets involve this record.
AAAA	Which IPv6 address?	2001:db8::10	If it exists but IPv6 is broken, modern browsers try it first and the site feels slow.
CNAME	What is this name an alias for?	shop.example.com	Cannot exist at the root of a domain. This trips up almost everyone once.
MX	Where does email for this domain go?	10 mail.example.com	The number is priority, and lower wins. It must point at a hostname, never an IP.
TXT	Any free text, in practice policy	v=spf1 ...	Where SPF, DKIM, DMARC, and domain ownership proofs live.
NS	Which servers are authoritative here?	ns1.hostkid.tn	This is the record that performs delegation.
PTR	Which name belongs to this IP?	mail.example.com	Reverse DNS. Owned by whoever owns the IP block, which is us. Critical for email.
SOA	Who is in charge of this zone and how fresh is it?	Serial, refresh, expiry values	The serial number must increase or your secondary servers will not update.
CAA	Which certificate authorities may issue for this domain?	0 issue "letsencrypt.org"	Cheap, underused protection against unauthorized certificate issuance.

TTL: the note on your fridge

TTL is how many seconds a resolver is allowed to keep an answer before asking again. It is a note on your fridge with an expiry time written on it.

Here is the operational rule I follow, and it has saved every migration I have done: lower the TTL before you change anything, not after. If a record has a TTL of 86400 seconds, that is 24 hours during which the old answer keeps being served to people who already cached it. Dropping the TTL to 300 a full day before the migration means that when you finally flip the record, the world follows you in five minutes.

TTL value	In human time	When to use it
300	5 minutes	During a planned migration, or for records that fail over
3600	1 hour	A sensible default for records that change occasionally
86400	24 hours	Stable records like NS and MX, where caching is a feature

Delegation and glue records

Delegation is a parent zone saying "I am not the authority for this subtree, go ask those servers instead." It is done with NS records.

Now here is the chicken and egg problem that glue records solve, and it is a genuinely fun one.

Reverse DNS, because email depends on it

Forward DNS turns a name into an address. Reverse DNS turns an address back into a name, and it is essentially caller ID.

The critical ownership point: reverse DNS is controlled by whoever owns the IP block, not by whoever owns the domain. Which means once HostKid has its own IP space, we control reverse DNS for every customer on it, and we become responsible for it. Mail servers around the world check that a sending IP has a sensible reverse name that matches forward DNS. Get it wrong and customer email lands in spam folders through no fault of the customer.

---

8. TLS: the sealed envelope and the ID check

The analogy: two jobs, not one

People think HTTPS means "encrypted." That is only half of it, and the missing half is the interesting one.

Imagine sending a confidential letter. You need two things:

1. A sealed envelope, so nobody along the way can read it. That is encryption.
2. Proof that the person receiving it is really who they claim to be. That is authentication.

Encryption without authentication is worthless. A perfectly sealed envelope delivered to an impostor is a perfectly secure delivery of your secrets to an attacker. This is why the certificate part of TLS matters as much as the cipher part.

The certificate: a passport, not a padlock

A certificate is a document that says "this public key belongs to example.com," signed by an authority that browsers already trust.

Passport analogy	TLS reality
Your passport	The server certificate, naming the domain
The regional office that printed it	The intermediate certificate authority
The national government everyone recognizes	The root certificate authority, pre installed in your browser
Border control checking the chain of issuers	The browser validating the chain of trust up to a root it already has
An expiry date on the document	Certificate validity, now usually 90 days or less

The handshake

Loading media

In plain words:

Message	Human translation
ClientHello	"Hello. Here are the encryption methods I speak, and here is my half of a shared secret."
ServerHello plus certificate	"Let us use this method. Here is my half of the secret, and here is my passport proving I am who I claim."
Finished on both sides	"We both computed the same key. Everything after this line is sealed."

Here is the part that felt like actual magic to me until I understood it: the two sides never send the secret key across the network. They each send a public half, and both independently compute the same shared secret from their own private half plus the other side's public half. Someone recording the entire conversation still cannot derive the key. That mechanism is called a key exchange, and it is the reason the internet can have commerce at all.

SNI: the doorman question

One server, one IP address, five hundred customer websites, each with its own certificate. Which certificate should the server present?

The server cannot know from the IP address alone, and it cannot read the HTTP request yet, because the HTTP request has not been decrypted yet. Chicken and egg again.

ACME and Let's Encrypt: certificates as a robot job

Certificates used to cost money and involve email threads. Then Let's Encrypt made them free, and ACME made them a protocol a robot can perform.

The challenge is simply a proof of control:

Challenge type	What you prove	Best for
HTTP-01	You can place a specific file on the web server for that domain	Single hostnames. Simple. Needs port 80 reachable.
DNS-01	You can create a specific TXT record in the domain's DNS	Wildcards, and servers not reachable from the internet
TLS-ALPN-01	You control the TLS service on port 443	Environments where port 80 is closed

The operational reality nobody puts in the marketing: free certificates mean renewal is now an uptime dependency. A 90 day certificate that fails to renew is a scheduled outage you agreed to in advance. So renewal must be monitored as a first class alert, and the alert must fire at 30 days remaining, not at expiry. Expiry monitoring is not paranoia. It is the whole point.

Two things to read in that output every time. Verify return code: 0 (ok) means the chain validated, which is the check most people skip. And -servername is you manually supplying SNI, which is how you test a specific customer's certificate on a shared IP address.

HSTS, redirects, and mixed content

Thing	What it does	The trap
HTTP to HTTPS redirect	Sends visitors who arrive on port 80 to the secure version	The very first request still travelled in the clear and could be intercepted
HSTS	Tells the browser "for the next N days, never even try plain HTTP for me"	Hard to undo. Browsers honour it for the full duration. Enable it with a short duration first and grow it.
Mixed content	An HTTPS page loading images or scripts over plain HTTP	Browsers block it, and the customer reports "my site looks broken after you installed SSL"

---

9. HTTP: ordering food at a restaurant

The analogy

You sit down. You tell the waiter what you want. The waiter brings it, or brings you an explanation of why he cannot.

Restaurant	HTTP
"I would like the couscous"	GET /couscous, the request line
"No salt, and I am allergic to nuts"	Request headers, extra instructions about the request
The waiter says "here you go"	Status code 200
"That is not on the menu"	404 Not Found
"The kitchen is on fire"	500 Internal Server Error
"I asked the kitchen and got no answer"	502 Bad Gateway
The actual plate of food	The response body

HTTP is just text, and that is the best news in this whole document

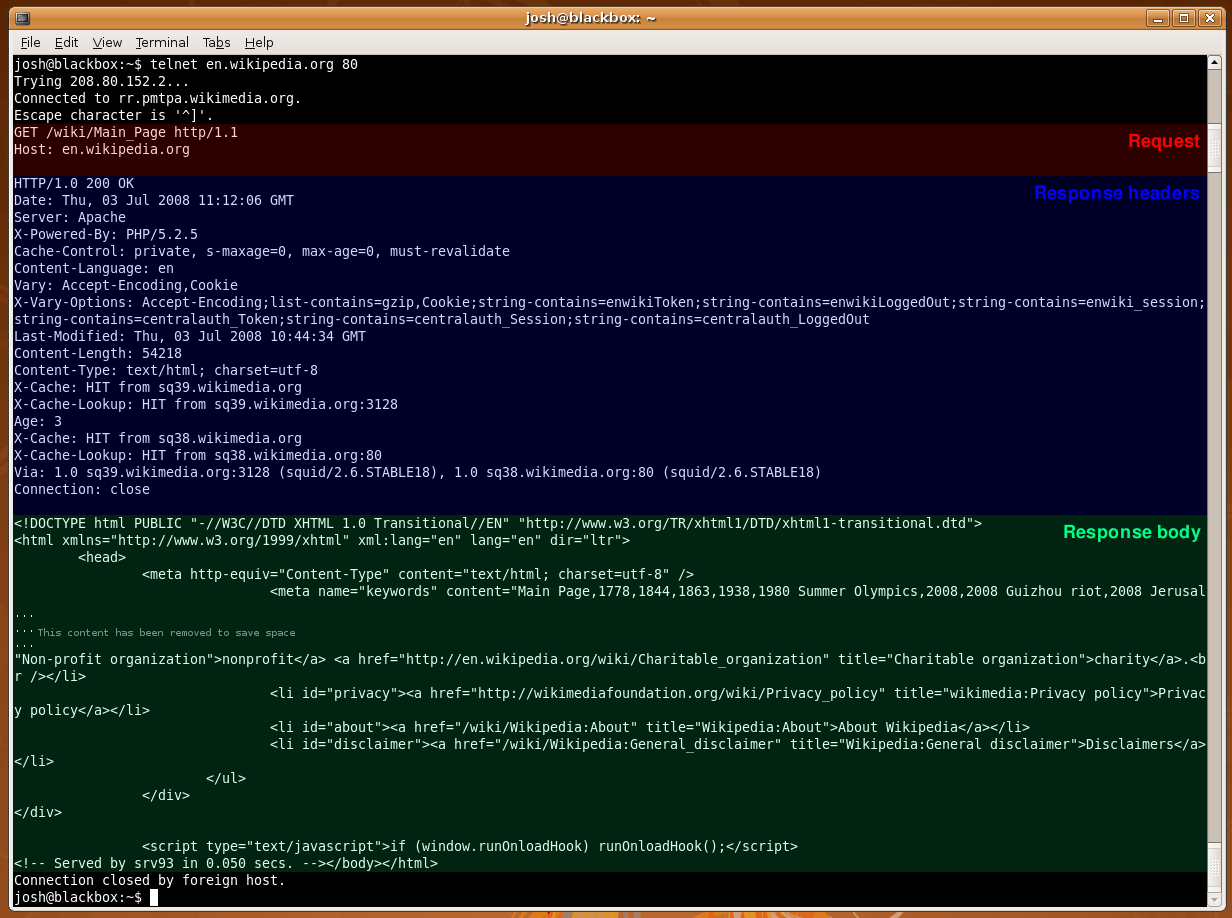

This is the moment a lot of people stop being intimidated. Here is a real HTTP conversation typed by hand into a raw connection.

Loading media

Two lines. That is the entire request. GET /wiki/Main_Page HTTP/1.1 and Host: en.wikipedia.org. Everything else in modern web performance is optimization layered on top of that.

Status codes, grouped so you never memorize them again

Family	Means	Whose fault	Ones you will actually see
2xx	It worked	Nobody, celebrate	200 OK, 201 Created, 204 No Content
3xx	It moved, go there instead	Nobody, but check for loops	301 permanent, 302 temporary, 304 unchanged
4xx	You asked wrong	The client	400, 401, 403, 404, 429 too many requests
5xx	We broke	Us. This is the on call number.	500, 502, 503, 504

The one line version I keep in my head: 500 means the code broke, 502 means the backend is dead, 503 means we are full, 504 means something is slow. Four different teams, four different first actions.

The versions, and why they exist

That first command is the single most useful support command in this document. It breaks one page load into its phases, so you can tell exactly which layer is slow instead of arguing about it. Slow dns means the name lookup, which is section 7. Slow tcp means network distance or packet loss, which is sections 4 and 6. Slow tls means the handshake, which is section 8. Slow total with everything else fast means the application is the problem, and nothing about the network needs touching.

Reverse proxy and caching

A reverse proxy sits in front of your real servers and takes the requests on their behalf. It is the receptionist of the web tier.

Job it does	Why it matters to us
Terminates TLS in one place	Certificates managed centrally instead of on every backend
Routes by hostname or path	Hundreds of customer sites behind one public IP
Caches responses	The cheapest performance win that exists, by a wide margin
Absorbs and rate limits abuse	The first line of defence in Doc 4
Adds X-Forwarded-For	Without it, every log entry shows the proxy's IP and you can never identify an attacker

---

10. Email routing: the layer where reputation is currency

The analogy: certified mail through several post offices

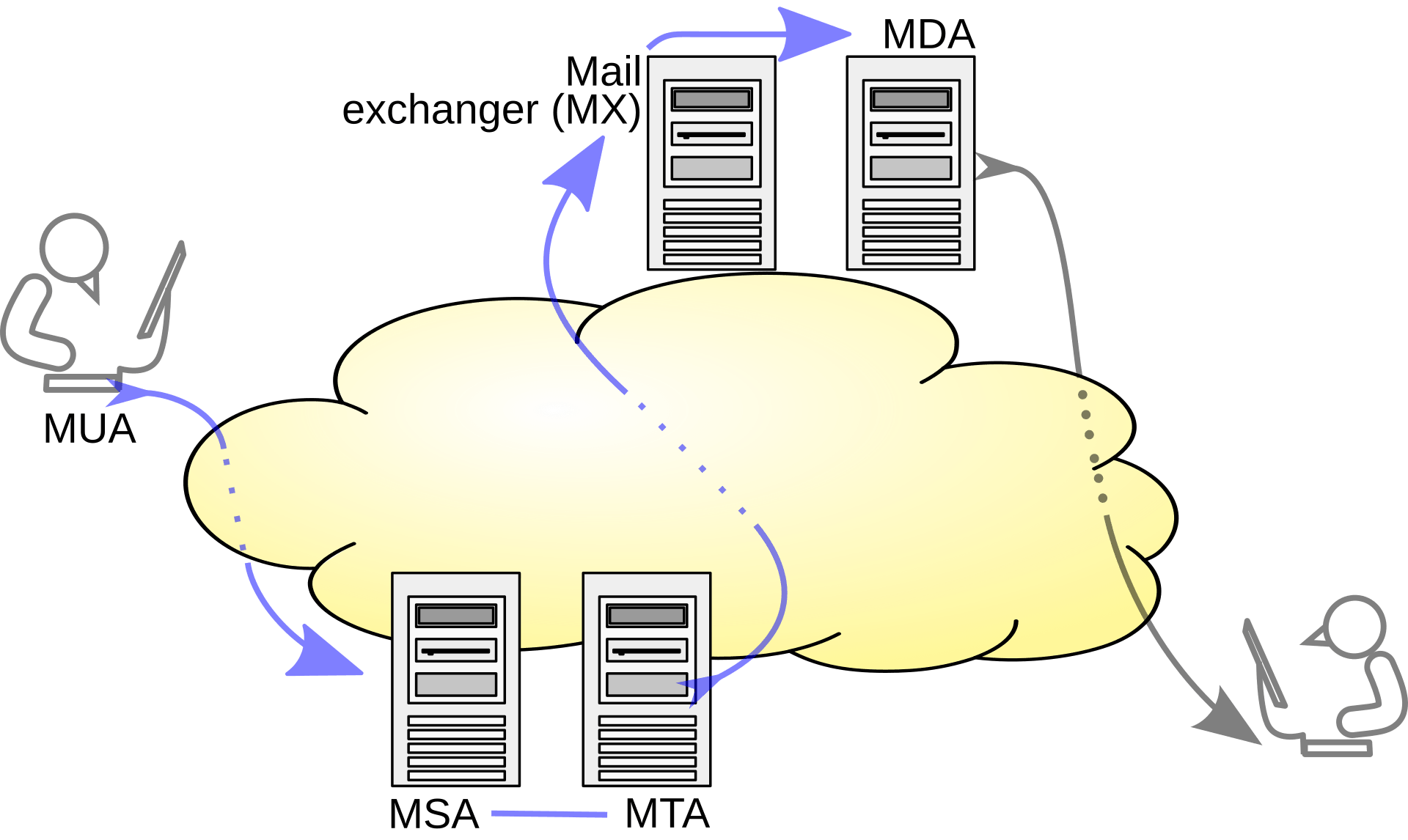

Email is not one hop. Your message passes through several post offices, each of which can stamp it, delay it, or refuse it.

Loading media

Acronym	Post office role	In practice
MUA	The person writing the letter	Outlook, Thunderbird, a webmail page, a PHP script
MSA	The counter that accepts your letter and checks your ID	Our submission service on port 587, always authenticated
MTA	The sorting office that relays between offices	Postfix or Exim talking port 25 to other servers
MX	The destination city's receiving office	Found by looking up the recipient domain's MX record
MDA	The postman who puts it in the actual box	Dovecot writing to the mailbox

How the sender finds the destination

Lower priority number wins, so 5 is tried first and the others are fallbacks. That third command is a reverse DNS lookup, and it is the first thing the receiving server does to your sending IP.

The three letters that decide whether your customer's email arrives

This is where a hosting company either builds a reputation or destroys one.

Bounces, and reading them correctly

Type	Code family	Meaning	Correct action
Soft bounce	4xx	Temporary. Mailbox full, server busy, rate limited.	Retry later. This is normal and expected.
Hard bounce	5xx	Permanent. No such user, domain does not exist, blocked.	Stop sending and remove the address.

Here is the rule that protects our IP reputation: repeatedly retrying a hard bounce is one of the strongest spam signals a mail platform can emit. Legitimate senders remove dead addresses. Spammers hammer them. If our platform hammers them, the receiving world concludes we are a spammer, and it does not matter that we are not.

---

11. Putting it together: one URL, every layer, in order

Now the payoff. A customer in Tunis types https://mysite.tn and presses enter. Here is everything that happens, using only words you now own.

Preparing diagram

Read as a checklist, that is:

Step	Layer	Section here	What breaks if it fails
Name becomes an address	7	DNS	"Server not found." Nothing else even gets a chance.
Packet leaves the house	3 and 2	IP and Layer 2	No route to host, or ARP never resolves the gateway
Source is rewritten	3	NAT	Reply has nowhere to come back to
Path is chosen hop by hop	3	Routing	Timeout, or traffic dies in a black hole
Port answers and handshake completes	4	TCP	Connection refused if closed, timeout if silently dropped
Identity is proven and traffic sealed	6	TLS	A browser security warning, which customers read as "you were hacked"
The right site is selected	7	SNI and Host header	The wrong customer's website loads, which is a genuine incident
The application answers	7	HTTP	A 5xx, and now it is our on call problem

The triage flow to actually use at 3 in the morning

Preparing diagram

Read that sequence as a story. The name resolves. The host is reachable. Port 443 accepts connections. The certificate validates. And then a 502. Four layers just got eliminated in under a minute, and we know with certainty that the network, DNS, and TLS are all innocent. The backend behind the proxy is not answering. Go look at the application process, not the firewall.

---

Labs and deliverables

Reading this page is not the same as owning it. These are the exercises that convert reading into skill.

---

Side definitions, all in one place

Keep this as your lookup table when a later volume uses a word without explaining it.

Term	One sentence definition
Packet	A unit of data at layer 3, carrying an IP header with source and destination addresses.
Frame	A unit of data at layer 2, carrying MAC addresses, valid only on one local link.
Encapsulation	Wrapping data from one layer inside the headers of the layer below it.
Broadcast domain	The group of devices that receive each other's broadcasts, normally one VLAN.
VLAN	A logical separation of one physical switch into several independent networks.
ARP	The unauthenticated protocol that maps an IP address to a MAC address on a local link.
Default gateway	The router a device sends traffic to when the destination is outside its own subnet.
CIDR	The slash notation stating how many leading bits of an address identify the network.
Longest prefix match	The rule that the most specific matching route always wins.
ASN	The number identifying an independently routed network in BGP.
NAT	Rewriting addresses or ports as traffic crosses a boundary, tracked in a state table.
Socket	The four part identity of a connection: source address and port plus destination address and port.
MTU	The largest packet a link will carry, normally 1500 bytes on Ethernet.
MSS	The payload that fits in one TCP segment after headers, normally 1460 bytes.
Recursive resolver	The DNS server that does the asking on your behalf and caches the answer.
Authoritative server	The DNS server that holds the real records for a zone.
TTL	How long a DNS answer may be cached, in seconds.
Glue record	Name server addresses stored at the parent, breaking the resolution loop for in domain name servers.
SNI	The hostname sent in the clear at the start of a TLS handshake so the right certificate is served.
Chain of trust	The path from a server certificate through intermediates to a root the client already trusts.
ACME	The protocol that automates proving domain control and issuing certificates.
HSTS	A header telling browsers never to use plain HTTP for this site again for a stated duration.
Reverse proxy	A server that accepts requests on behalf of backends, terminating TLS and often caching.
MX record	The DNS record naming which servers accept email for a domain, lowest priority first.
PTR record	Reverse DNS, mapping an IP address back to a hostname, controlled by the IP block owner.
SPF, DKIM, DMARC	Published authorization, cryptographic signature, and failure policy for a domain's email.

---

Success criteria for this document

You are done with this page when you can do all of these without looking anything up.

You can	Proving you understand
Explain to a non technical manager why a website loads for some people and not others	DNS caching and TTL
Subnet a /16 into named blocks on a whiteboard, no calculator	CIDR and block size
Say what a router does with a packet it has never seen a route for	Default route and longest prefix match
Explain why NAT is not a firewall, and why it still runs out of capacity	State tables and security boundaries
Diagnose "small pages work, large uploads hang" in under five minutes	MTU, MSS, and the ICMP black hole
Tell the difference between a recursive and an authoritative failure from one ticket	DNS architecture
Explain why five hundred HTTPS sites can share one IP address	SNI and the Host header
Name the first thing to check for each of 500, 502, 503, and 504	HTTP status semantics
Explain why one bad customer can break email for all the others	Shared IP reputation
Run the five command triage and correctly name the guilty layer	The entire document, working together

One last thing from me. Do not aim to memorize this page. Aim to reach the point where, when something breaks, your instinct is to ask which layer instead of restarting a service. That instinct is the entire difference between an operator and an engineer, and it is the only reason this document exists.
